Product Details
technical data
| Brand | Yanmar | |||
| Model | Yanmar 3TNV82A | |||
| Fuel Type | Diesel | |||
| Engine Specifications | Imperial System | Metric system | ||
| Parameter | unit | Parameter | unit | |
| Displacement | 61 | in3 | 1.331 | L |
| Gross Power | 30.2 | hp | 22.2 | kW |
| Rated speed | 3000 | rpm | 3000 | rpm |
| Pump Type | Imperial System | Metric system | ||
| Gear Pump | Parameter | unit | Parameter | unit |
| Flow Rate | 14.1 | gpm | 53.4 | L/min |
| Pressure | 3046 | psi | 210 | bar |
| Travel Speed | 3.5 | mph | 5.6 | km/h |
| Max Auxiliary Flow for attachment | 12.7 | gpm | 48 | L/min |
| Cylinder Bore Diameter | 3.2 | in | 82 | mm |

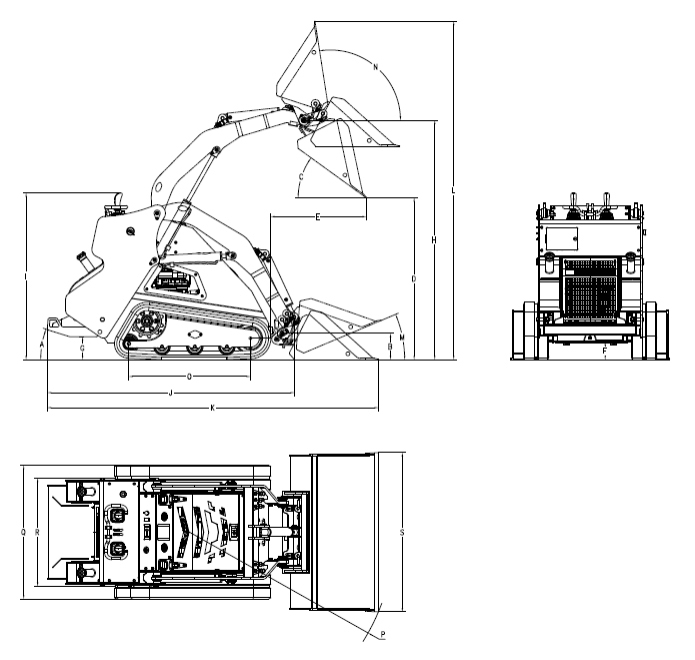

| Dimensions | Imperial System | Metric system | ||
| Parameter | unit | Parameter | unit | |
| D： Dumping Height | 50 | in | 1271 | mm |
| H： Max Bucket Hinge Pin Height | 74 | in | 1880 | mm |
| I： Overall Machine Height | 52 | in | 1309 | mm |
| J： Machine Length（W/out attachment） | 76 | in | 1942 | mm |
| K：Overall Machine Length (w/Standard Bucket) | 102 | in | 2603 | mm |
| Q： Overall Machine Width | 41 | in | 1050 | mm |
| Operating Weight | 2392 | lb | 1085 | kg |
