Product Details
technical data
| Brand | EU Stage IIIA | |||
| Model | ||||
| Fuel Type | ||||
| Engine Specifications | Imperial System | Metric system | ||
| Parameter | unit | Parameter | unit | |
| Displacement | 148.5 | in3 | 2.434 | L |
| Gross Power | 49.6 | hp | 36.5 | kW |
| Rated speed | 2600 | rpm | 2600 | rpm |
| Pump Type | Imperial System | Metric system | ||
| gear pump | Parameter | unit | Parameter | unit |
| Flow Rate | 15.9 | gpm | 60 | L/min |
| pressure | 3000 | psi | 207 | bar |
| hydrostatic transmission | ||||
| Flow Rate | 14.4 | gpm | 54 | L/min |
| pressure | 3625 | psi | 250 | bar |

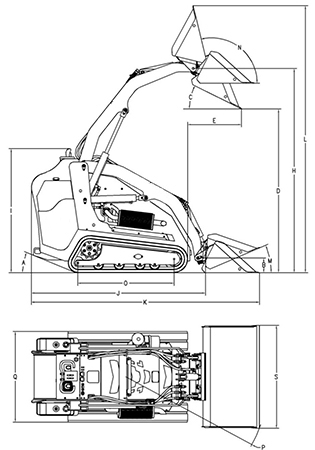

| Dimensions | Imperial System | Metric system | ||
| Parameter | unit | Parameter | unit | |
| D： Dumping Height | 78 | in | 1987 | mm |
| H： Max Bucket Hinge Pin Height | 98 | in | 2478 | mm |
| I： Overall Machine Height | 59 | in | 1505 | mm |
| J： Machine Length（W/out attachment） | 83 | in | 2114 | mm |
| K：Overall Machine Length (w/Standard Bucket) | 109 | in | 2769 | mm |
| Q： Overall Machine Width | 43 | in | 1100 | mm |
| Operating Weight | 3638 | lb | 1650 | kg |
